FQ-3CS820 分切机
    发布时间: 2025-09-10 15:16

FQ-3CS820

Slitting Machine

分切机

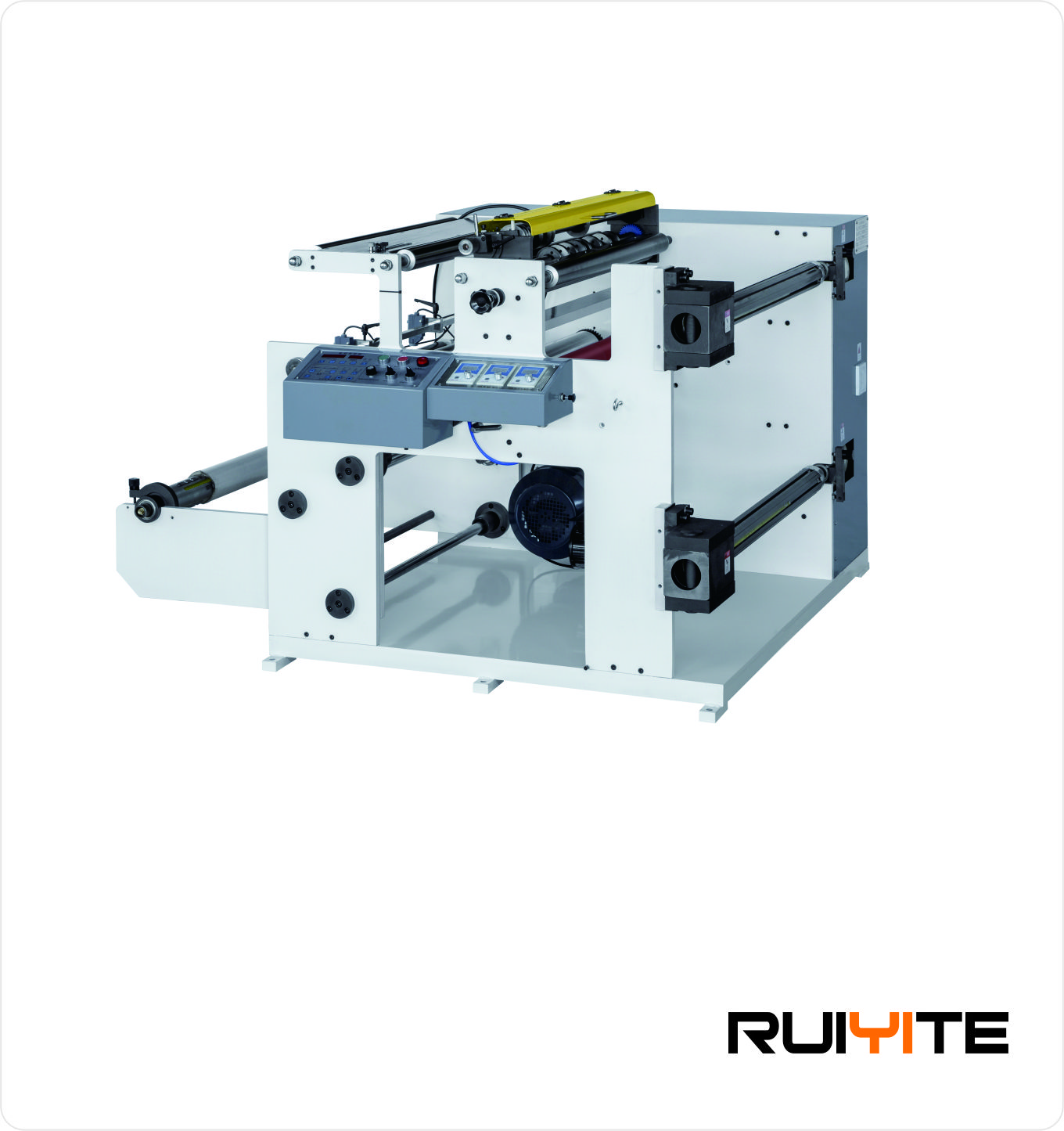

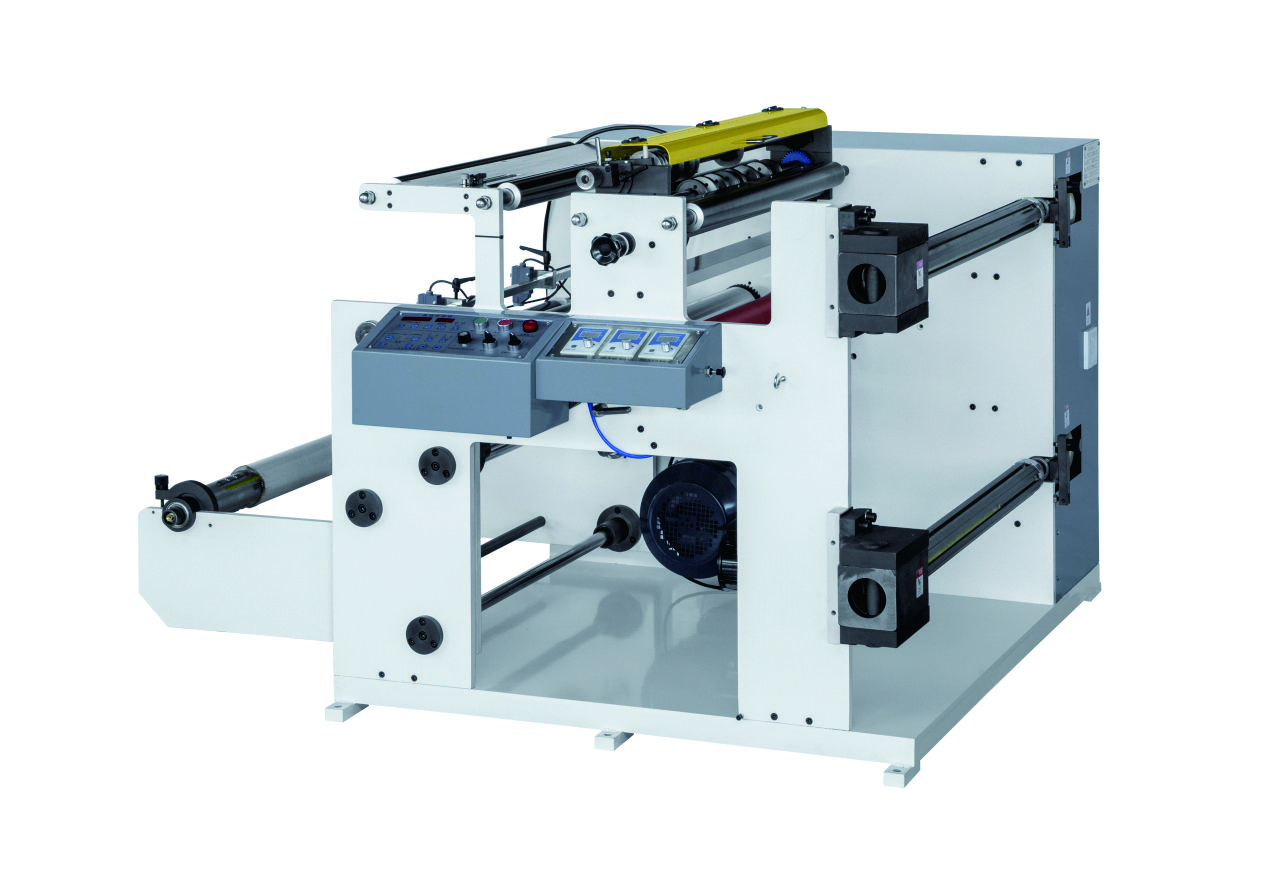

FQ-3CS820 分切机

性能特点

FUNCTIONS

自动分切机是自动模切机的配套产品,此机适用于窄幅度纸张分切,它具有自动计米、计数,设定长度、数量自动停机,放卷由光电自动叫信控制等功能,整机结构紧凑、速度快、效率高、分切准确、操作简单、运行平稳等特点。

Automatic slitting machine is the supporting product of automatic die-cutting machine. This machine is suitable for narrow range paper slitting. It has automatic metering, counting, setting length, automatic stop of quantity, winding by photoelectric automatic call control and other functions. The whole machine has the characteristics of compact structure, fast speed, high efficiency, accurate slitting, simple operation, stable operation and so on.







◎主要技术参数

Main Technical Parameter



Model

型号

FQ-3CS820

Cutting Speed

分切速度

20-150m/min

Max Web Width

卷筒纸最大宽度

820mm

Max Unwinding Diameter

最大放卷直径

850mm

Max Rewinding Diameter

最大收卷直径

550mm

The cutting precision

分切精度

±0.15mm

Overall Diameters

外形尺寸

1780×1700×1300(mm)

Export packaging dimensions

出口包装尺寸

1880×1800×1400mm

Machine Weight

整机重量

(about)1500kg

The main motor power

主电机功率

4kw
