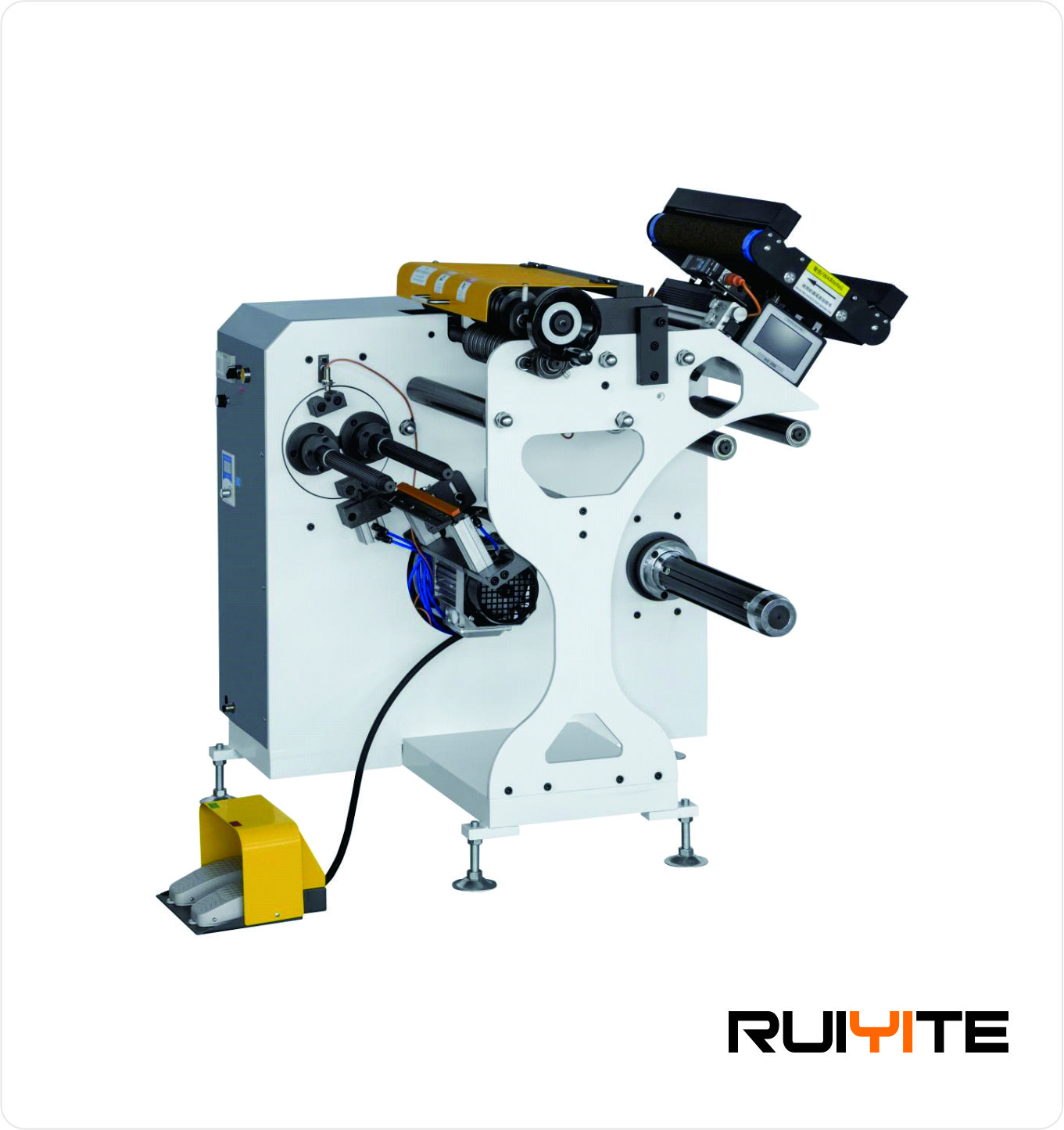

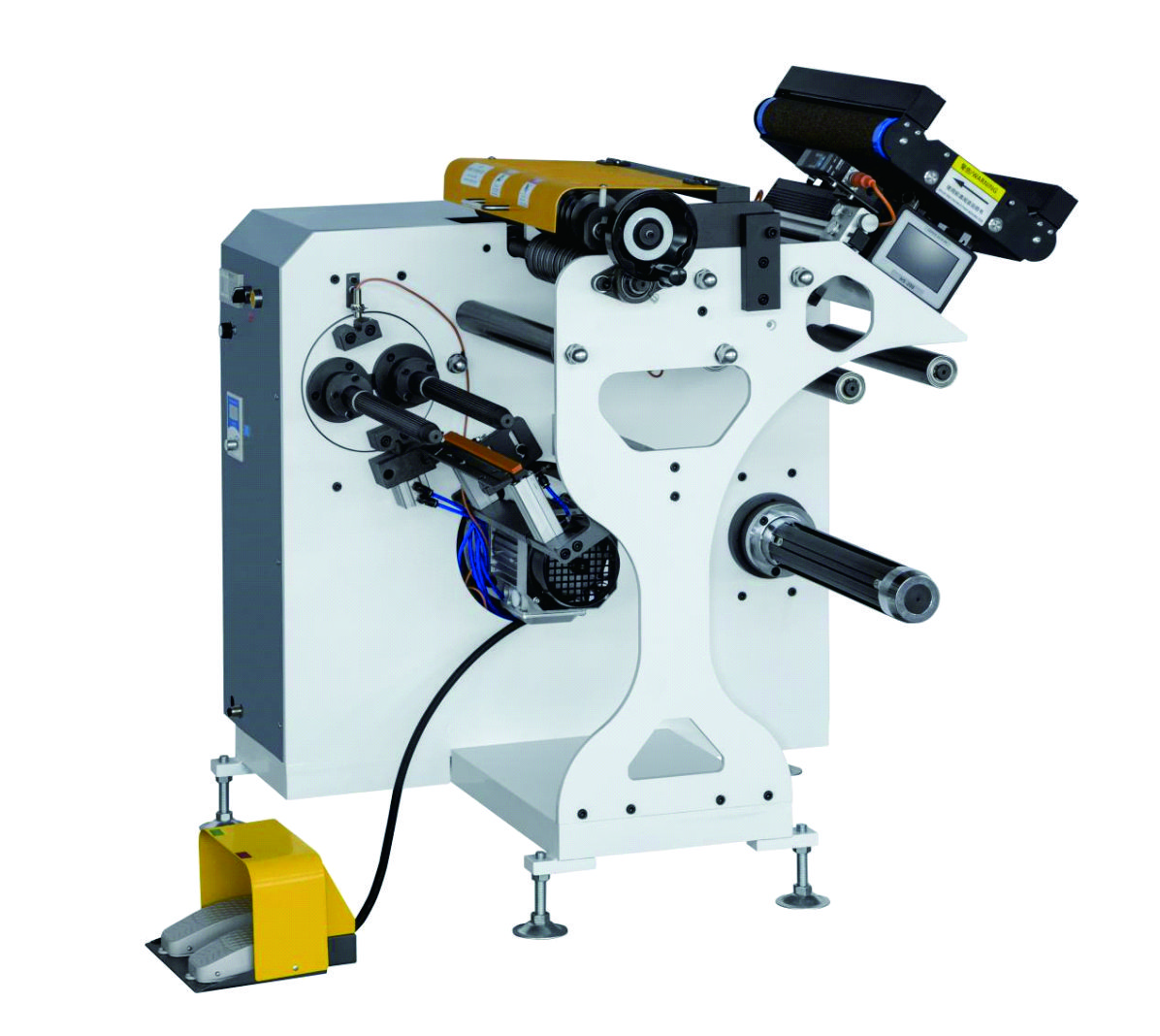

FQ-GE350 分切机
    发布时间: 2025-09-10 15:22

FQ-GE350

Slitting Machine

分切机


FQ-GE350 分切机

性能特点

FUNCTIONS

FQ-GE350自动分切机是自动模切机的配套产品,此机用于窄幅度纸张分切,它具有自动纠偏、计米、计数,设定长度、数量自动停机,放卷由光电自动叫信控制等功能,整机结构紧凑、速度快、效率高、分切准确、操作简单、运行平稳等特点。

 FQ-GE350

The automatic slitting machine, a specialized accessory for die-cutting machines, is designed for narrow-width paper slitting. It features automated deviation correction, metering and counting functions, customizable length settings, automated stop mechanisms based on preset quantities, and photoelectric-controlled roll feeding. This compact machine delivers fast operation, high efficiency, precise slitting accuracy, user-friendly controls, and smooth performance with its streamlined design.

◎主要技术参数

Main Technical Parameter

Model

型号

FQ-GE350

Cutting Speed

分切速度

20-80m/min

Max Web Width

卷筒纸最大宽度

350mm

Max Unwinding Diameter

最大放卷直径

500mm

Max Rewinding Diameter

最大收卷直径

150mm

The cutting precision

分切精度

±0.15mm

Overall Diameters

外形尺寸

1000×950×1200(mm)

Machine Weight

整机重量

(about)270kg

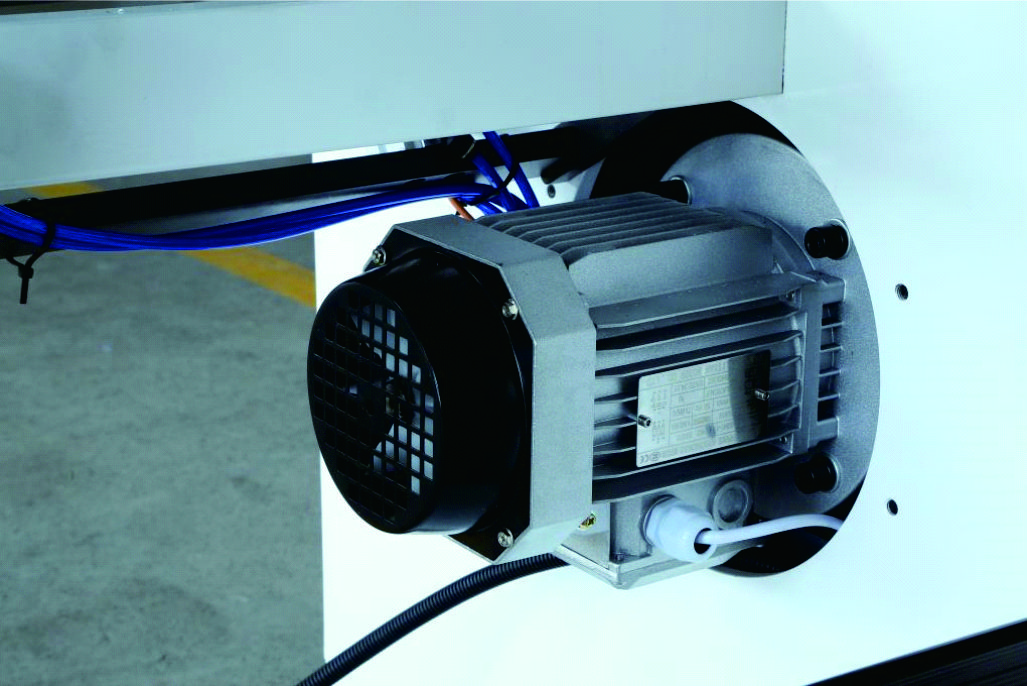

The main motor power

主电机功率

1.1kw
