FQ-DC450/550 分切机
    发布时间: 2025-09-10 15:13

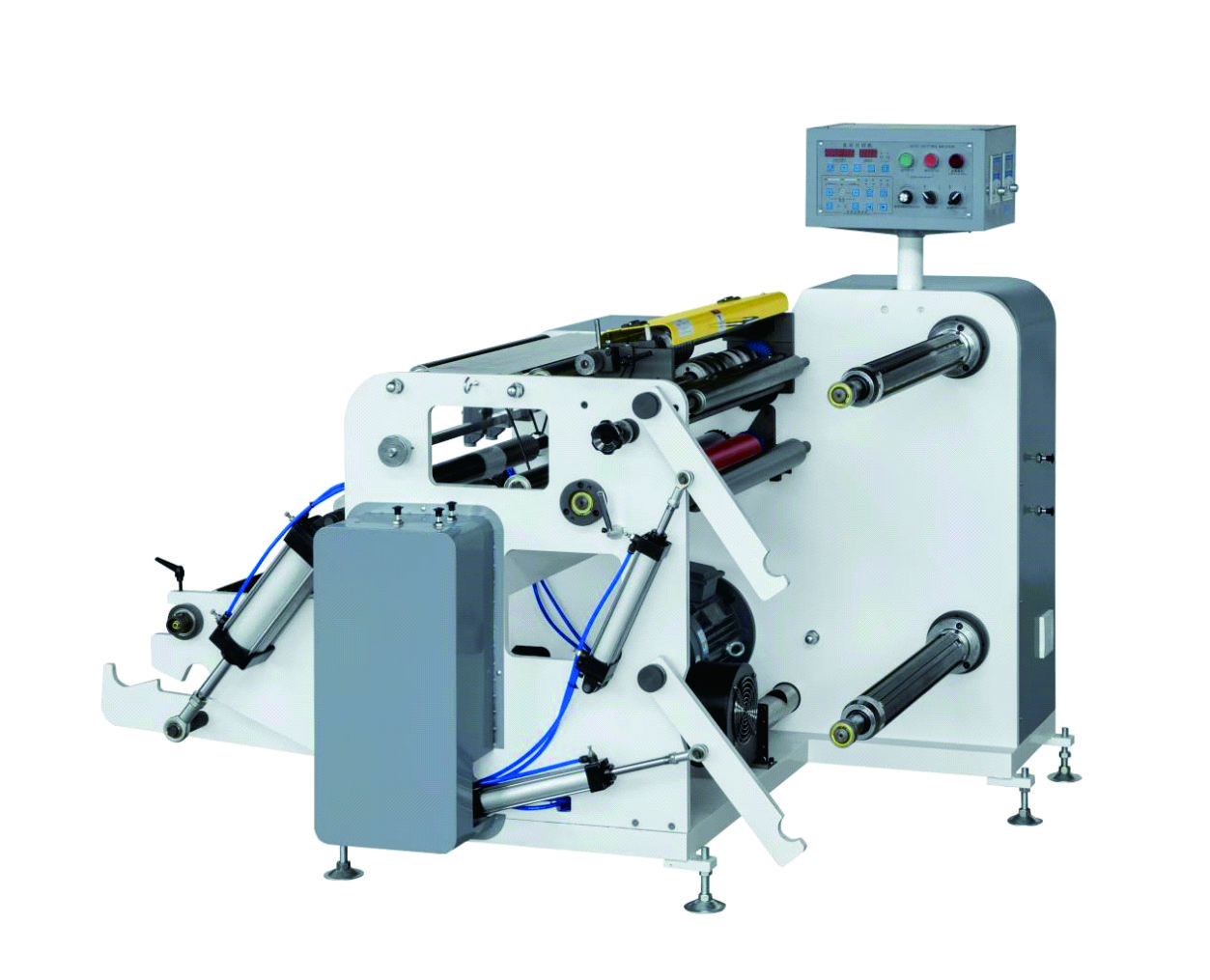

FQ-DC450/550 Slitting Machine 分切机

FQ-DC450/550 分切机

性能特点

FUNCTIONS

自主研发专利产品,高速标签分条机,大卷放料系统可自动上料。收料系统支持多种规格气涨轴使用。具有高精度计米、计数功能。

Our self-developed patented product, the high-speed label slitting machine, features an automatic feeding system for large rolls. The rewinding system supports the use of various pneumatic mandrels. It also offers precise metering and counting functions.

◎主要技术参数

Main Technical Parameter



Model

型号

FQ-DC450

FQ-DC550

Cutting Speed

分切速度

20-120m/min

20-120m/min

Max Web Width

卷筒纸最大宽度

450mm

550mm

Maximum uncoiled diameter

最大放卷直径

900mm

900mm

Max Rewinding Diameter

最大收卷直径

600mm

600mm

The cutting precision

分切精度

±0.15mm

±0.15mm

Overall Diameters

外形尺寸

1750×1200×1450(mm)

1750×1300×1450(mm)

Export packaging dimensions

出口包装尺寸

1850×1300×1550mm

1850×1400×1550mm

Machine Weight

整机重量

(about)920kg

(about)920kg

The main motor power

主电机功率

5kw

5kw
