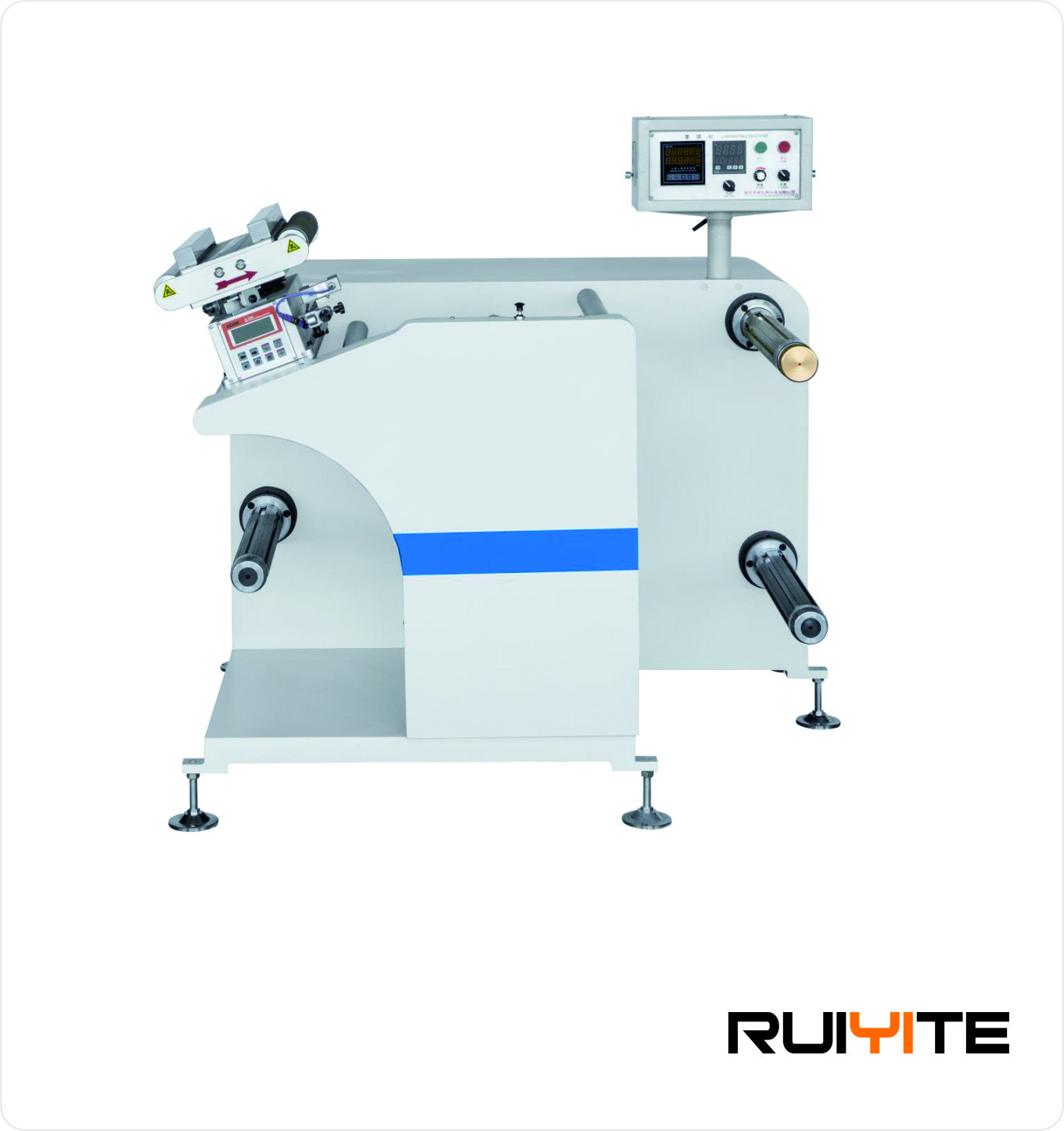

FM-450 卷筒热覆膜机
    发布时间: 2025-09-10 15:39

FM-450

Laminating Machine

卷筒热覆膜机


FM-450 卷筒热覆膜机

性能特点

FUNCTIONS

该机机构紧凑,大大节省企业的用地空间,采用油压恒温加热控制,保证印品质量。采用预涂膜,比一般的冷漠成本更加低,。该机前后收放卷采用磁粉张力控制,保证机器质量。带有自动纠偏系统,使不齐的产品也能完美覆膜,节省材料。该机是各大印刷企业必备的印后好帮手,值的你拥有!

The machine is compact mechanism, greatly saves the enterprise land space, the use of oil constant temperature heating control, ensure the printing quality. By pre coating film, much lower than the cost of the general apathy,. The machine before and after the reeling adopts magnetic powder tension control, guarantee the machine quality. With automatic correction system, make not homogeneous products can also be the perfect film, save material. This machine is the necessary major printing enterprises a good helper for prepress, value you have!



◎主要技术参数

Main Technical Parameter



Model

型号

FM-450

Max Web Width

卷筒纸最大宽度

460mm

Maximum film width

最大覆膜宽度

450mm

Maximum uncoiled diameter

最大放卷直径

600mm

Max Rewinding Diameter

最大收卷直径

600mm

Maximum diameter of the film covered

覆膜的膜最大直径

600mm

Total Power

总功率

5kw

Speed

速度

10-80m/min

Voltage

电压

220v

Heating Mode

加热方式

油温加热

The Mode Of The Pressure

加压方式

油压控制/气压控制

Size

尺寸

1400*1500*1350mm
