SMS–350/500 说明书标签机
    发布时间: 2025-09-10 15:35

SMS–350/500

ROTARY PRESS

说明书标签机

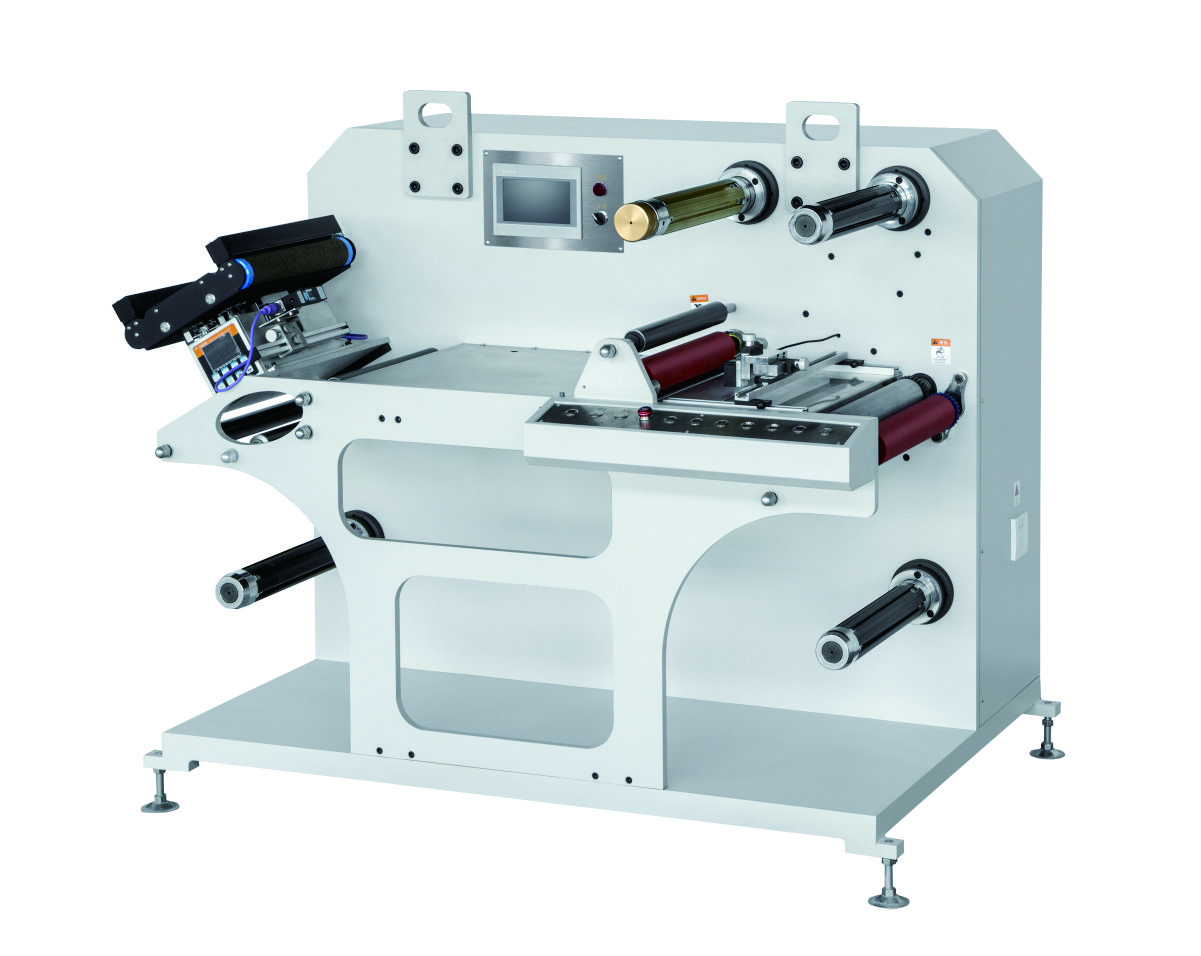

SMS–350/500 说明书标签机

性能特点

FUNCTIONS

本机主要实现说明书标签定位复合,说明书手动定位,与不干胶废料及直层透明膜自动定位复合为一体,可实现卷装说明书标签生产。

This machine mainly realizes the label positioning composite of instruction manual, manual positioning of instruction manual, and automatic positioning and composite of adhesive waste and direct layer transparent film, which can realize the production of rolled instruction manual labels.



◎主要技术参数   Main Technical Parameter











Model

型号

SMS-350

SMS-450

The Maximum Width Of The Paper Roll

卷筒纸最大宽度

350mm

450mm

Maximum Unwinding Diameter

最大放卷直径

500mm

500mm

Max Rewinding Diameter

最大收卷直径

500mm

500mm

Maximum mold diameter

最大放模直径

350mm

350mm

Adhere speed

贴合速度

30-200/min

30-200/min

Positioning Accuracy

定位精度

±0.10mm

±0.10mm

Host Power

主机功率

3kw

3kw

Overall Diameters

外形尺寸

1700*1160*1320mm

1700*1260*1320mm

Machine Weight

整机重量

(about)700kg

(about)730kg
