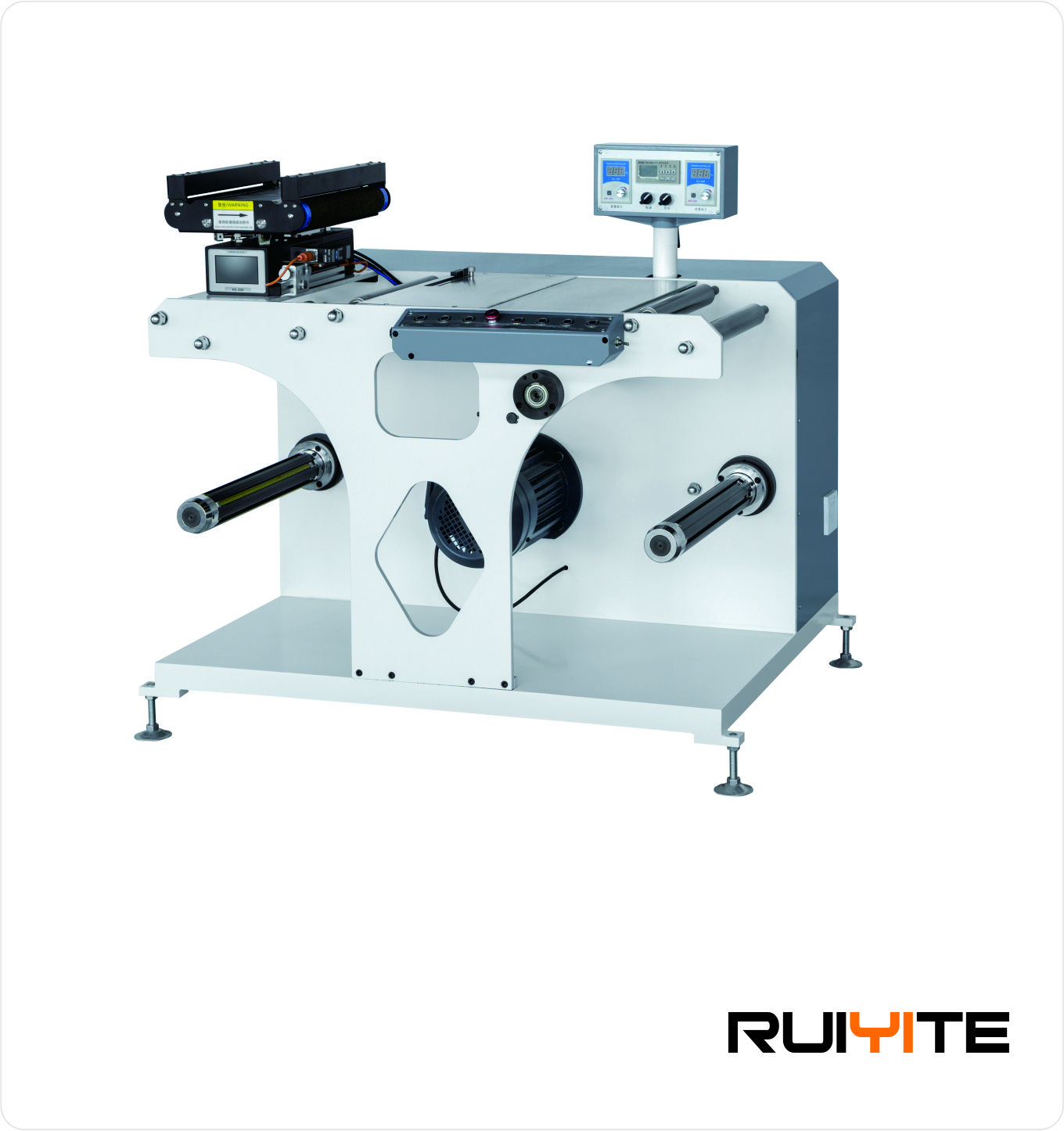

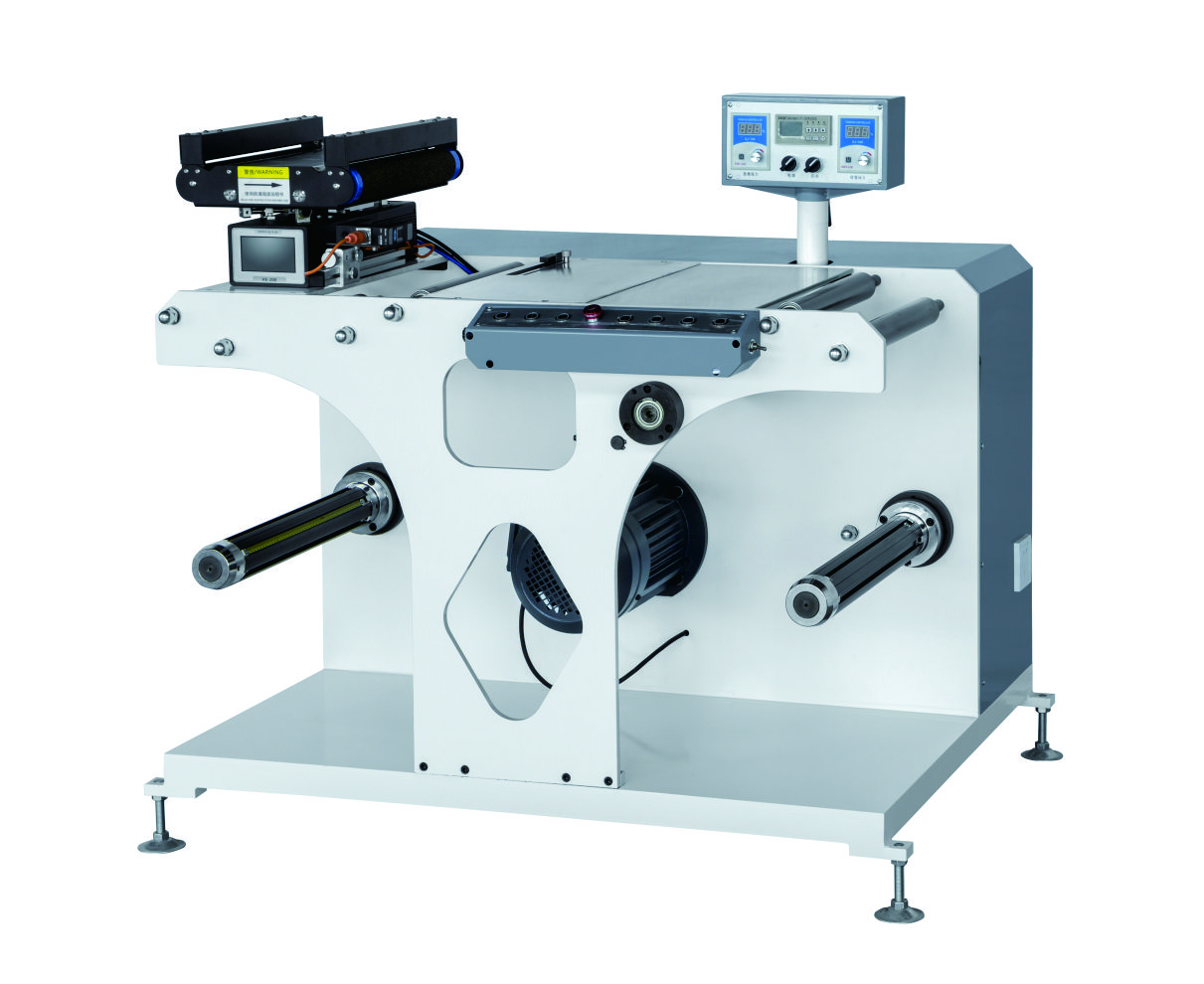

JB-PT350/450/550 平台式检标机
    发布时间: 2025-09-10 14:45

JB-PT350/450/550

平台式检标机

Platform Type Inspection Machine


JB-PT350/450/550 平台式检标机

性能特点

FUNCTIONS

JB-PT350检标机是柔版印刷机、自动商标模切机的配套产品,用来检验柔版印刷和模切产品的质量,具有自动计米、记数功能。该机采用磁粉张力,过程纠偏系统。整机结构紧凑、速度快、变频调速效率高、操作简单、可正反方向运行、运行平稳等特点。

JB-PT350 inspection and marking machine is a supporting product of flexographic printing machine and automatic trademark die-cutting machine, which is used to inspect the quality of flexographic printing and die-cutting products. It has the functions of automatic metering and counting. The machine adopts magnetic powder tension and process correction system.The whole machine has the characteristics of compact structure, fast speed, high efficiency of frequency conversion speed regulation, simple operation and Running in both directions and stable operation.

◎主要技术参数

Main Technical Parameter



Model

型号

JB-PT350

JB-PT450

Check Mark Speed

检标速度

20-80m/min

20-80m/min

Max Web Width

卷筒最大宽度

350mm

450mm

Max Unwinding Diameter

最大放卷直径

600mm

600mm

Max Rewinding Diameter

最大收卷直径

600mm

600mm

Voltage

电源电压

AC220V±10%

AC220V±10%

Power

功率

2.2KW-6

2.2KW-6

Overall Diameters

外形尺寸

1350×1080×1300(mm)

1350×1180×1300(mm)

Machine Weight

整机重量

510kg

530kg
