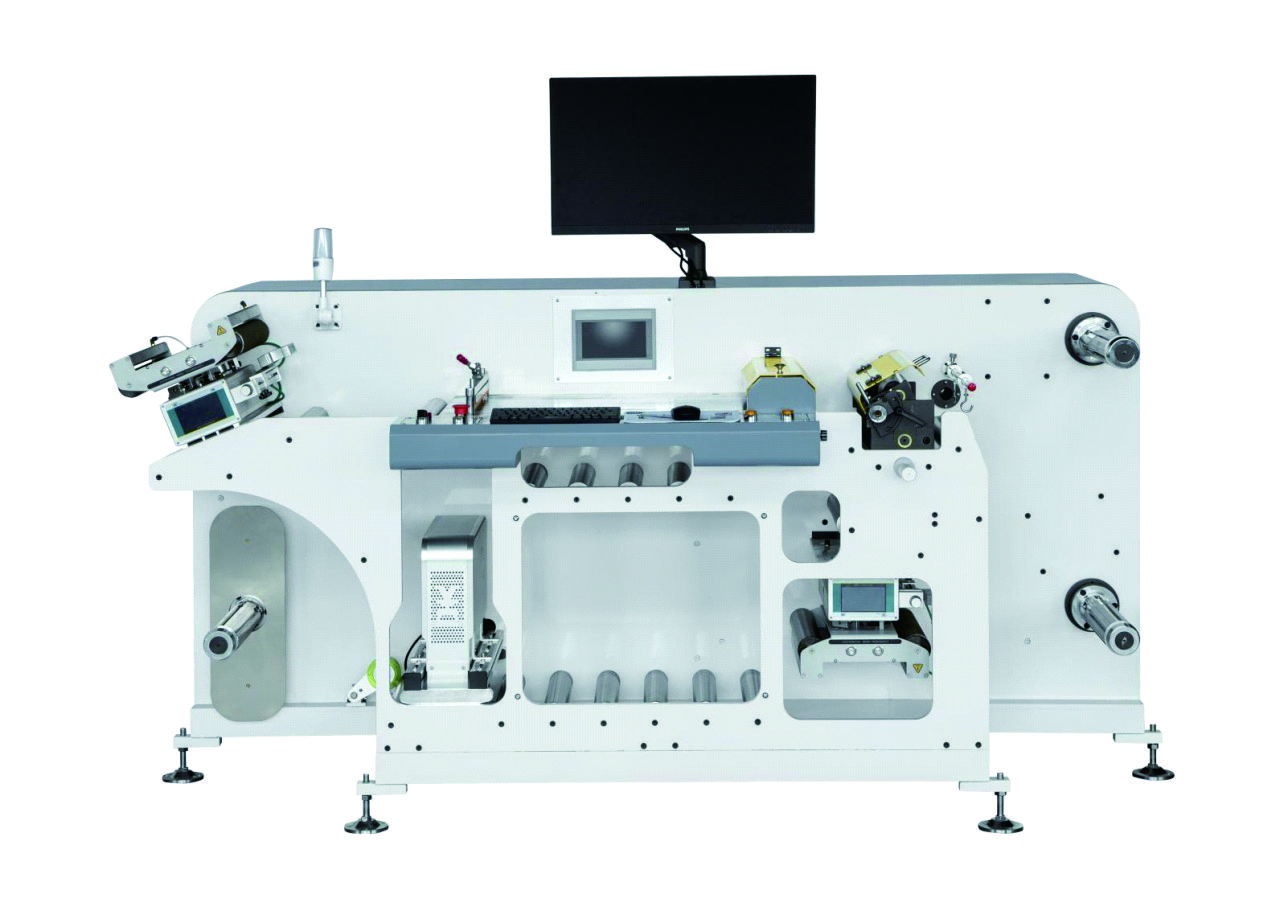

JB-SA-350/450/520 自动检标分切机
    发布时间: 2025-09-10 14:41

JB-SA-350/450/520 自动检标分切机

JB-SA-350/450/520 自动检标分切机

产品性能

FUNCTIONS



 自主研发专利产品,窄幅标签高速检标分切机,高端全伺服收放卷锥度张力系统,名牌过程纠偏系统,具有计米、计数功能,少料减速或停车,支持静电处理。

Independent research and development of patented products, narrow band label high-speed inspection and cutting machine, high-end full servo winding cone tension system, brand-name process correction system, with metering and counting function, less material reduction or stop, support for electrostatic treatment.











Model

型号

350

450

520

Max Web Width

卷筒最大宽度

350mm

450mm

520mm

Cutting speed

分切最快速度

20-200m/min

20-200m/min

20-200m/min

Maximum speed of machine operation

机器运行最快速度

20-150m/min

20-150m/min

20-150m/min

Max unwinding diameter

最大放卷直径

650mm

650mm

650mm

Max rewinding diameter

最大收卷直径

650mm

650mm

650mm

Overall diameter

外形尺寸

1930*1135*1630mm

1930*1235*1630mm

1930*1335*1630mm

Main motor power

主电机功率

1.5kw

2.2kw

3kw

Weight

重量

1000kg

1200kg

1500kg

Voltage

电压

220v

380v

380v

Total Power

总功率

6kw

7kw

9kw
