FQ-GB350/450 高速分切机
    发布时间: 2025-09-10 14:55

FQ-GB350/450

High-speed Slitting Machine

高速分切机

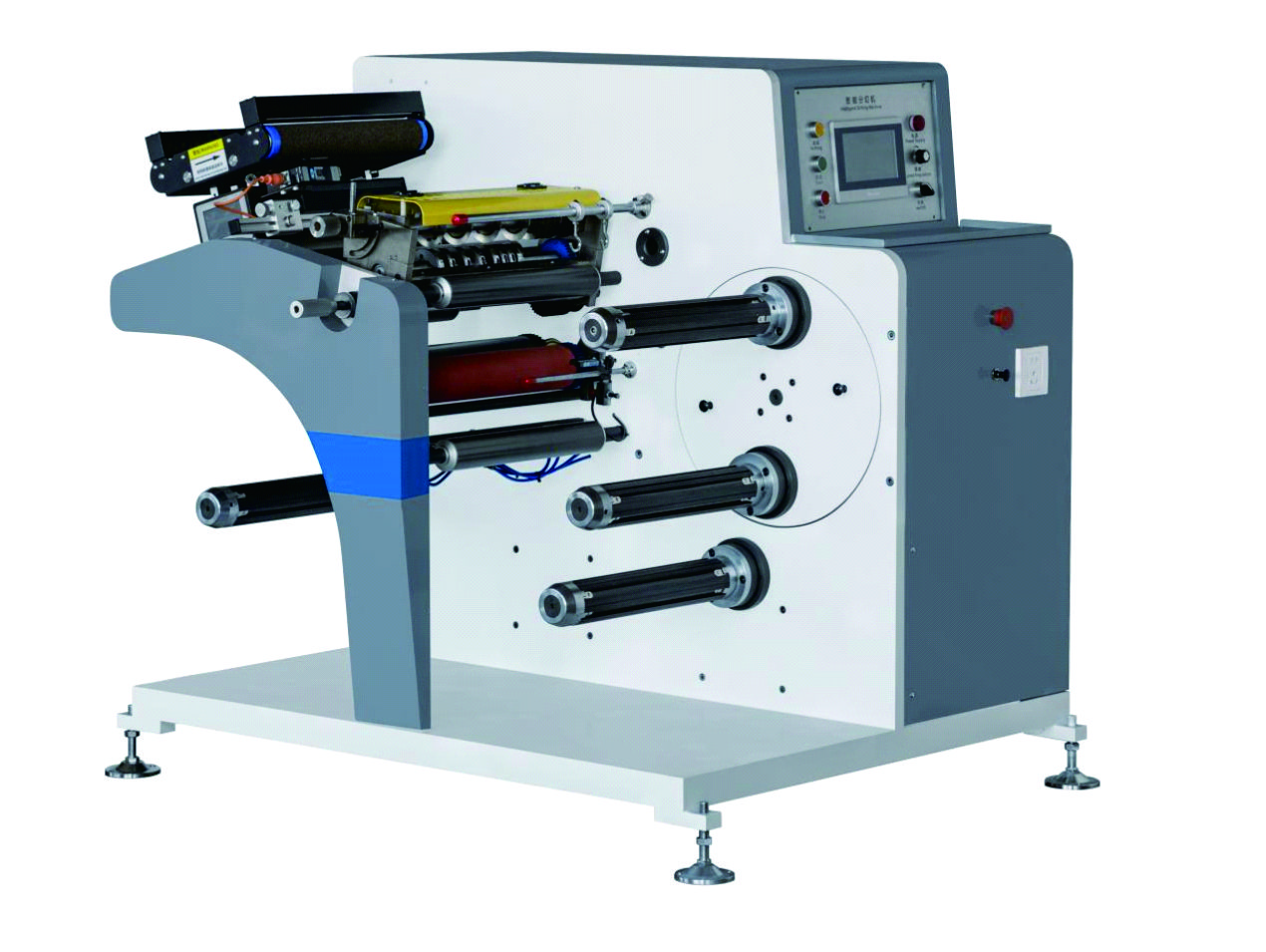

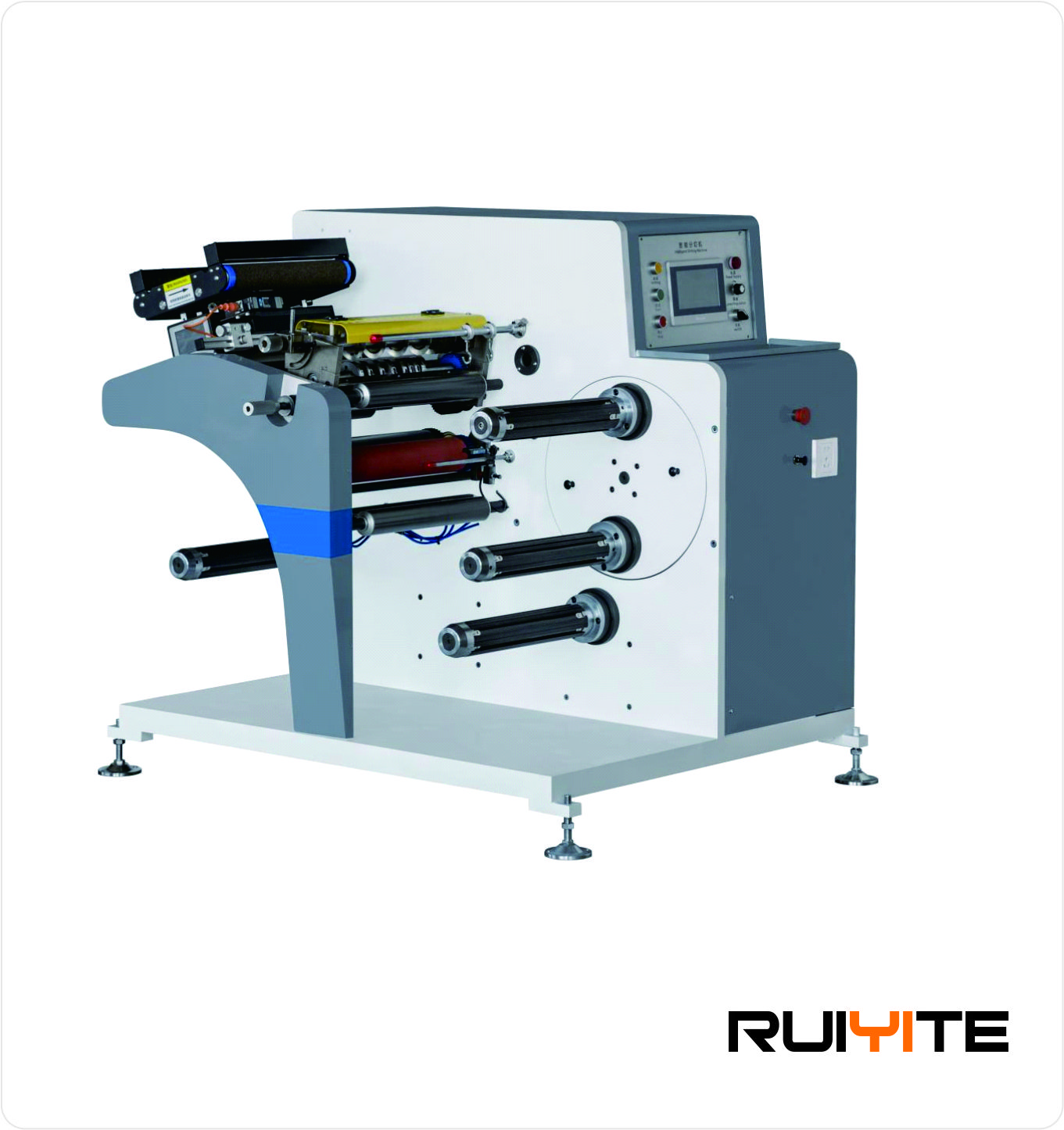

FQ-GB350/450 高速分切机

性能特点

FUNCTIONS

自主研发专利产品,窄幅标签高速分切机,高端全伺服收放卷锥度张力系统,过程纠偏系统,具有计米、计数功能,少料减速或停车,支持静电处理。

Independent research and development of patented products,high-speed slitting machine for narrow labels, high-end full-servo rewinding and unwinding taper tension system, Process correction system, with meter counting and counting functions, less material deceleration or parking, and support for electrostatic processing.







◎主要技术参数

Main Technical Parameter

Model

型号

FQ-GB350

FQ-GB450

Cutting Speed

分切速度

20-350m/min

20-350m/min

Max Web Width

卷筒纸最大宽度

350mm

450mm

Maximum uncoiled diameter

最大放卷直径

650mm

650mm

Max Rewinding Diameter

最大收卷直径

450mm

450mm

 Overall Diameters

外形尺寸

1410×1130×1300(mm)

1410×1230×1300(mm)

The main motor powe

主电机功率

1.5kw

2.2kw

Weight

重量

855kg

1055kg

Voltage

电压

220v

220v

tal power

总功率

2kw

3kw
