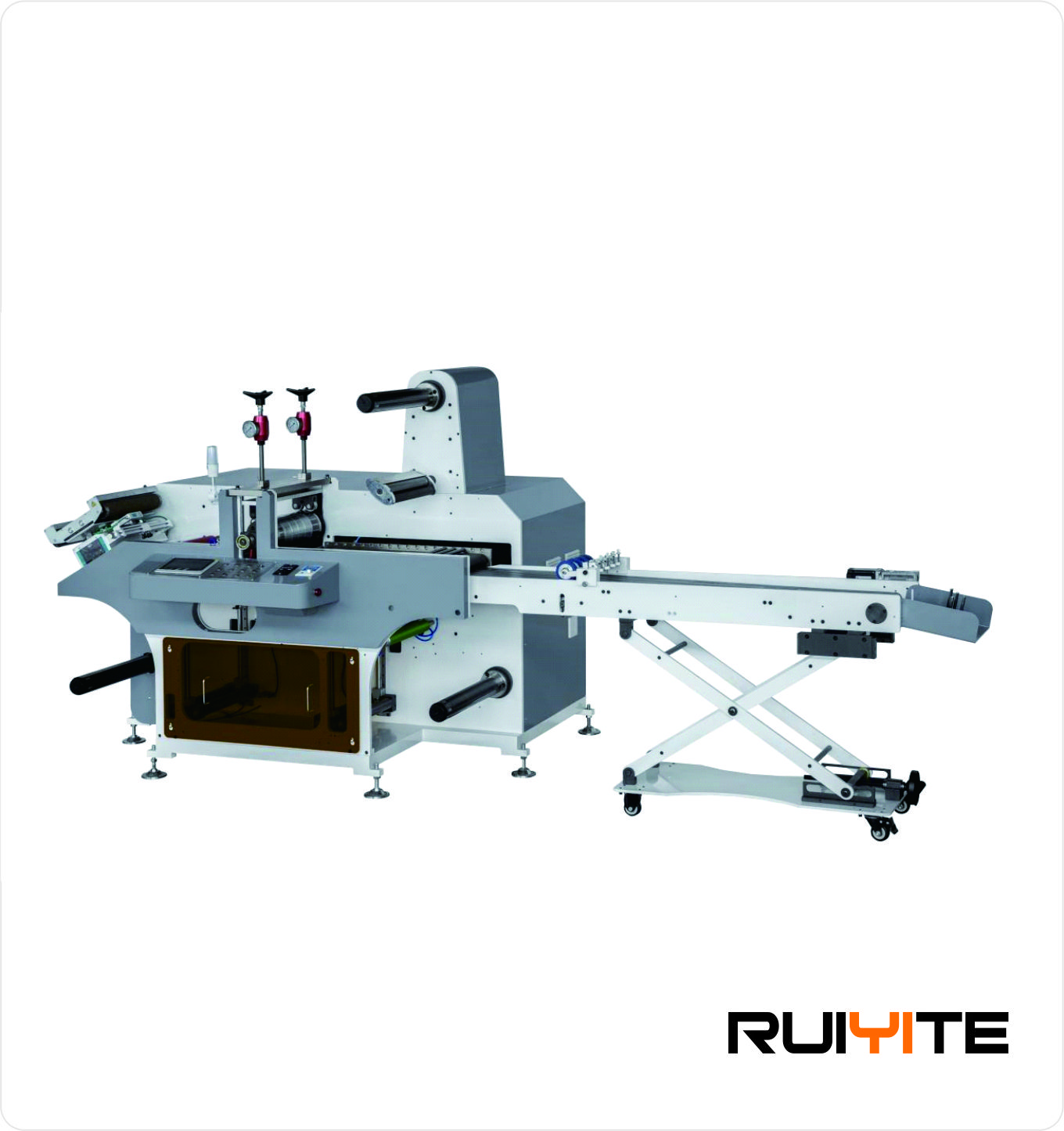

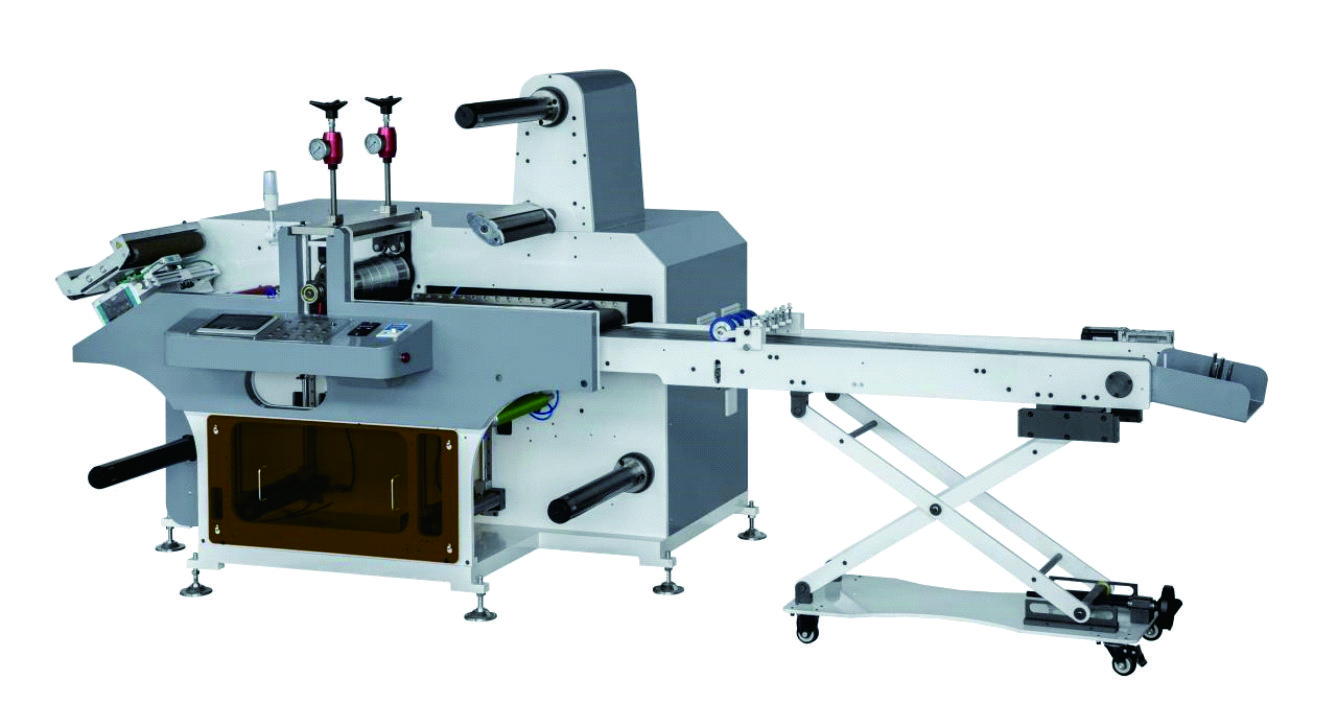

JX-D320 间歇圆压圆
    发布时间: 2025-09-10 13:53

JX-D320

Intermittent Circular Pressure

间歇圆压圆


JX-D320 间歇圆压圆

性能特点

FUNCTIONS

JX-D320多功能间歇轮转模切机，本设备针对标签印刷企业模内标签无法模切或者使用传统设备效率低下等问题而开发，并且取得多项专利。该机整合了模内标签全轮转模切方式与不干胶间歇模切方式，两种工作模式可随意互换，小批量模内标还可以使用间歇方式模切。很好的解决了印刷厂模内标签项目难以启动的困惑。另外还可以选配覆膜、分条或切单张。

The JX-D320 multifunctional intermittent rotary die-cutting machine was developed to address issues such as the inability to die-cut in-mold labels or low efficiency with traditional equipment in label printing companies. It has also been awarded multiple patents. This machine integrates both full rotary die-cutting for in-mold labels and intermittent die-cutting for pressure-sensitive labels, allowing easy switching between the two modes. For small batches of in-mold labels, intermittent die-cutting can also be used. This effectively resolves the challenges faced by print shops in starting in-mold label projects. Additionally, it can be equipped with options for laminating, slitting, or cutting individual sheets.

◎主要技术参数

Main Technical Parameter







Model

型号

JX-D320

JX-D450

Maximum die-cutting speed with intermittent half-wear

间歇半穿最高模切速度

0-40m/min

0-40m/min

Maximum die-cutting speed with rotating semi-perforation

轮转半穿最高模切速度

0-60m/min

0-60m/min

Intermittent full wear maximum die-cutting speed

间歇全穿最高模切速度

0-30m/min

0-30m/min

Maximum die-cutting speed is achieved by rotating the entire sheet

轮转全穿最高模切速度

0-50m/min

0-50m/min

Intermittent maximum die-cut length

间歇最大模切长度

330 mm

330 mm

Precision of self-adhesive die cutting

不干胶模切精度

±0.15 mm

±0.15 mm

In-mold label cutting accuracy

模内标模切精度

±0.25 mm

±0.25 mm

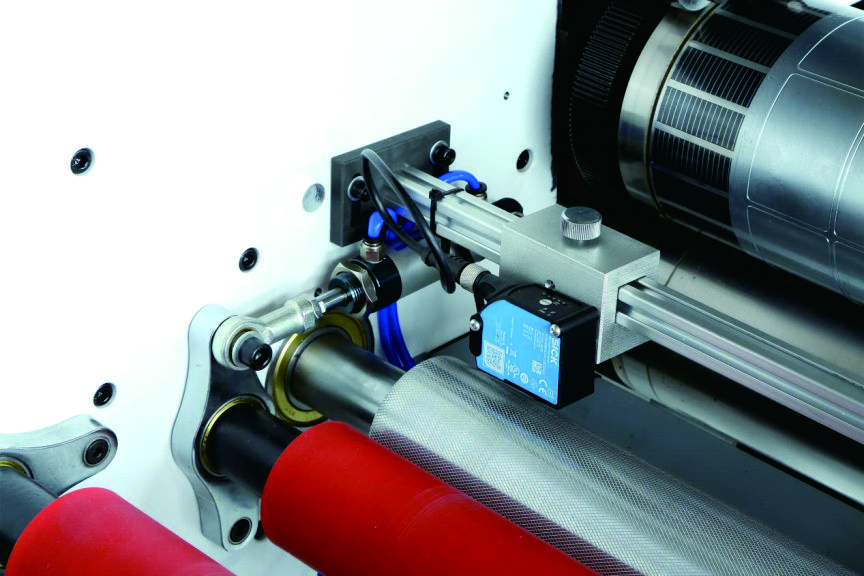

Die-cutting positioning method

模切定位方式

色标传感器

色标传感器

Maximum paper feed width

最大进纸宽度

310 mm

440 mm

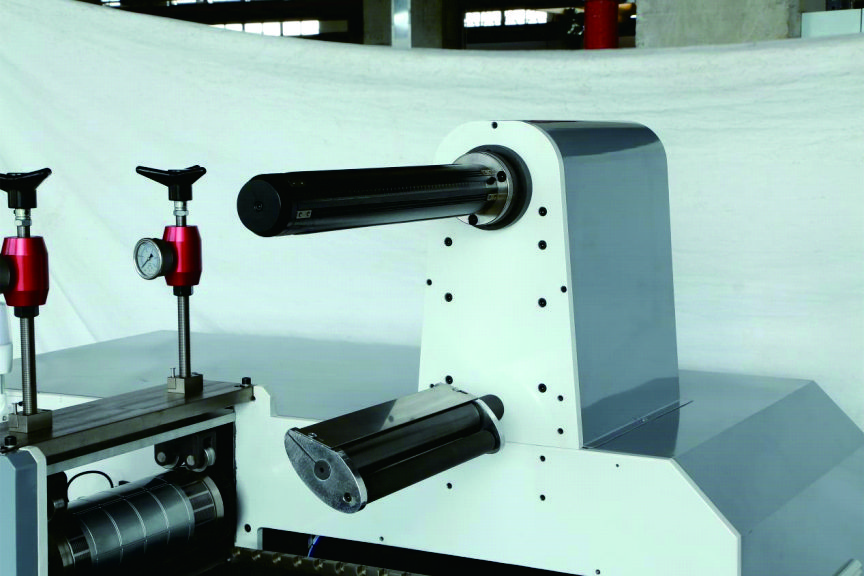

Max Unwinding Diameter

最大放卷直径

600mm

600mm

Max Rewinding Diameter

最大收卷直径

600mm

600mm

Standard die cutting magnetic roller

标配模切磁性辊

140T

140T

Total Power

总功率

8 kw

10 kw

Overall Diameters

机身尺寸

2100*1500*1700mm

2100*1630*1700mm

Machine Weight

整机重量

1200 KG

1500KG

 working power supply

工作电源

AV380 V50 HZ

AV380 V50 HZ

Air pressure requirements

气压要求

0.4~0.6 MPa

0.4~0.6 MPa

Minimum cut width

最小分切宽度

16 mm

16mm
